QRP short wave power meter&standing wave meter
Open source projects: https://g8gyw.github.io/
Based on G8GYW open source project
Power measurement and standing wave measurement
Features:
Frequency range: 1.6MHz~30MHz
Power range: 0.1w~11w
Power measurement accuracy: better than ± 5% (@ temperature 22 ° C)
Standing wave range: 1.0-19.9
Insertion loss: ＜ 0.15dB
Instrument standing wave: ＜ 1.02@50 Ω

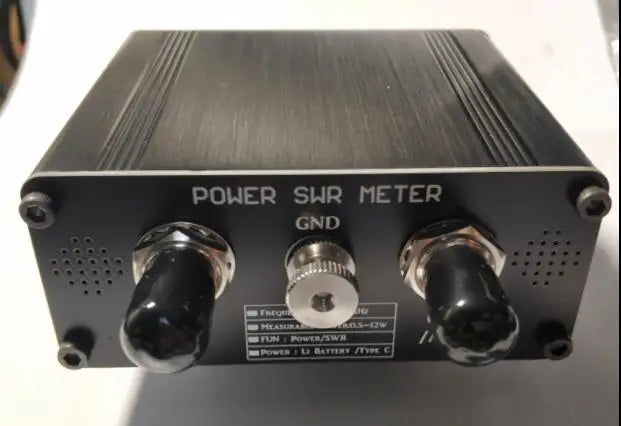

RF interface: BNC (BNC shipped by default, other M-type/N-type can be customized)
Charging interface: type-C
Size: 88mm * 38mm * 70mm (excluding protrusions)
Built-in battery: 800mAh
explain:
After startup, first display version information and battery voltage information
After 2s, display the power and standing wave measurement interface
The red light is on when charging, and the red light is off when fully charged
Packing list:
Type-C data cable x1
POWER&SWR meter host x1
