1-10MW to 30W-50W 11M-14MHz 13.56MHz RF Power Amplifier AMP + LPF
1-10MW to 30W-50W 11M-14MHz 13.56MHz RF Power Amplifier AMP + LPF
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

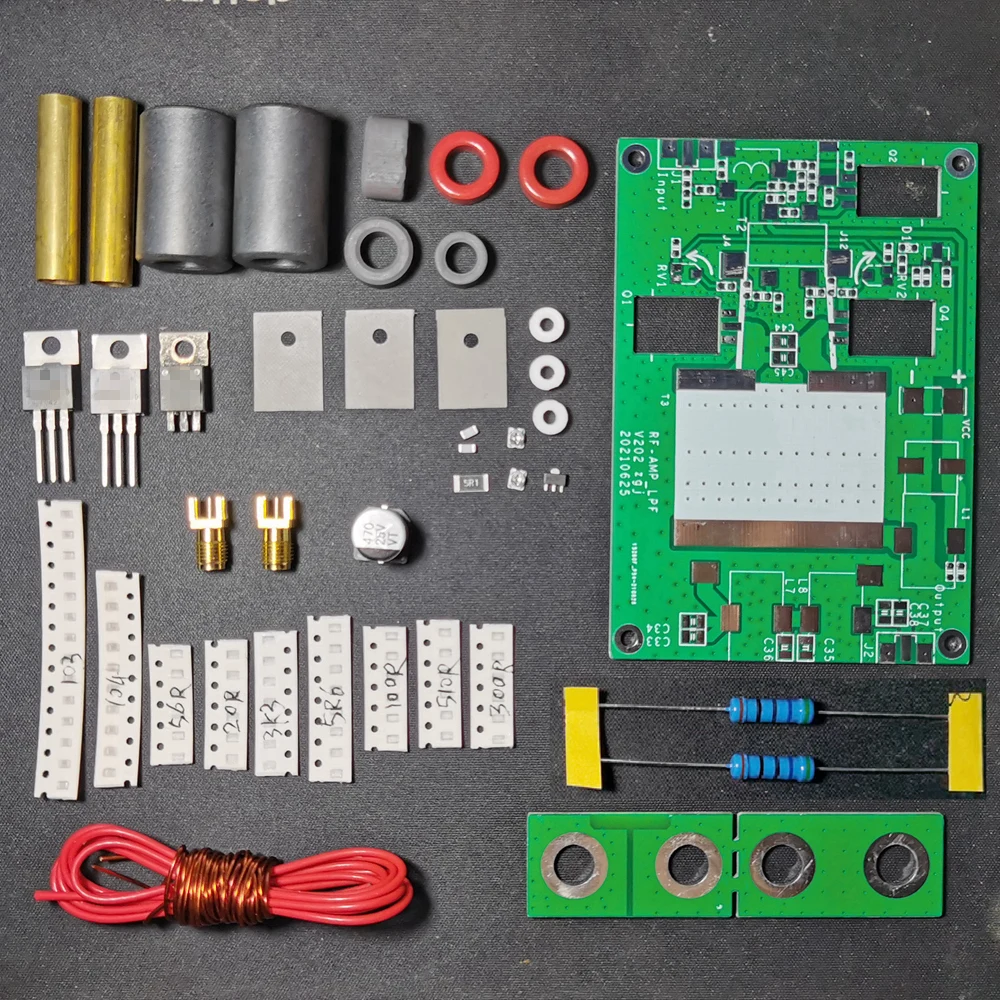

Note: DIY KITS : without heatsink

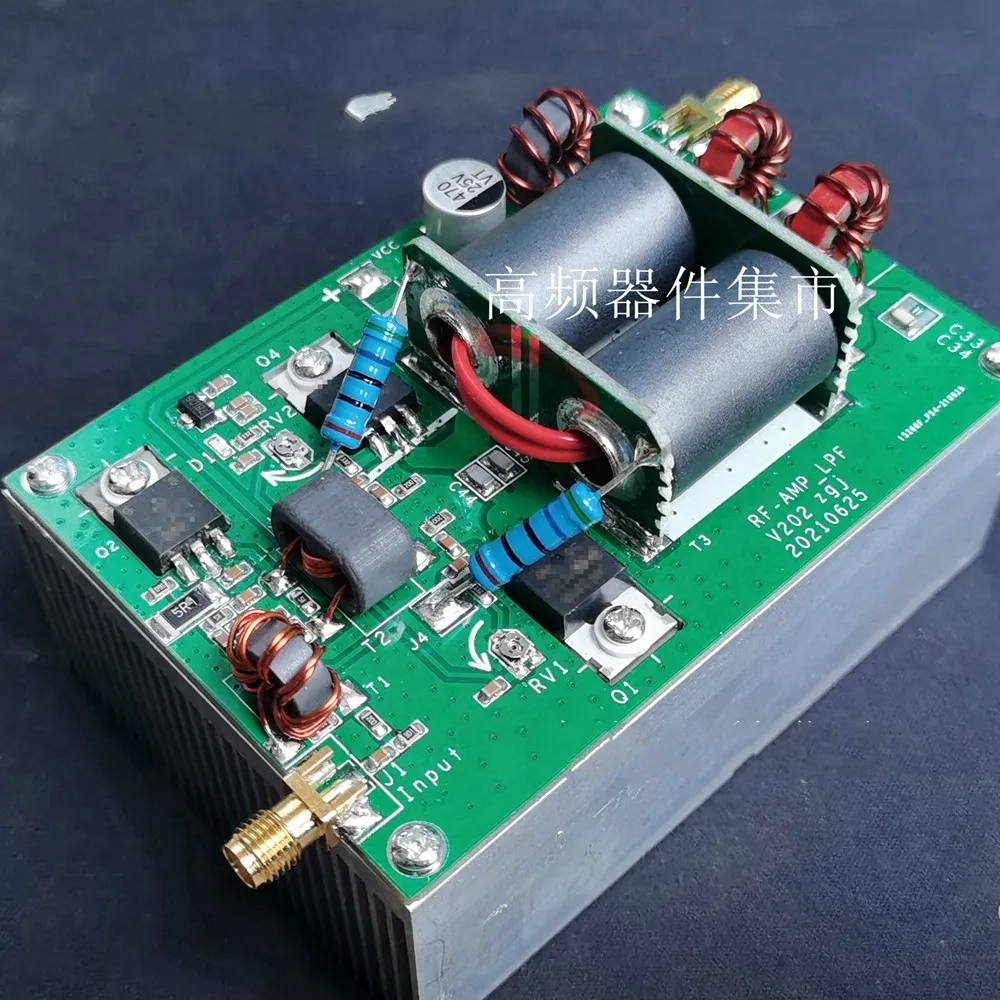

Assembled one: with heatsink,

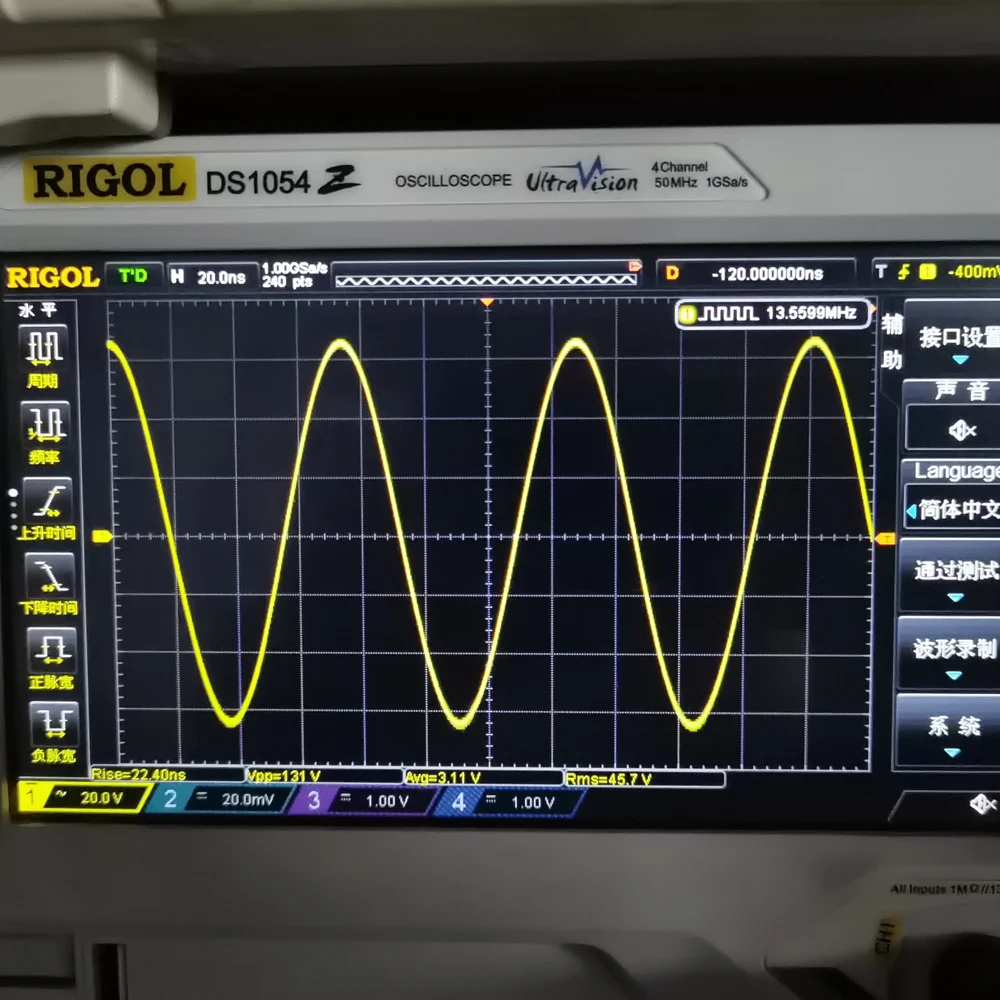

With low-pass power amplifier, output perfect sine wave.
Input: 0-10dbm (1-10MW)
Output: 45-47dbm (30-50w)

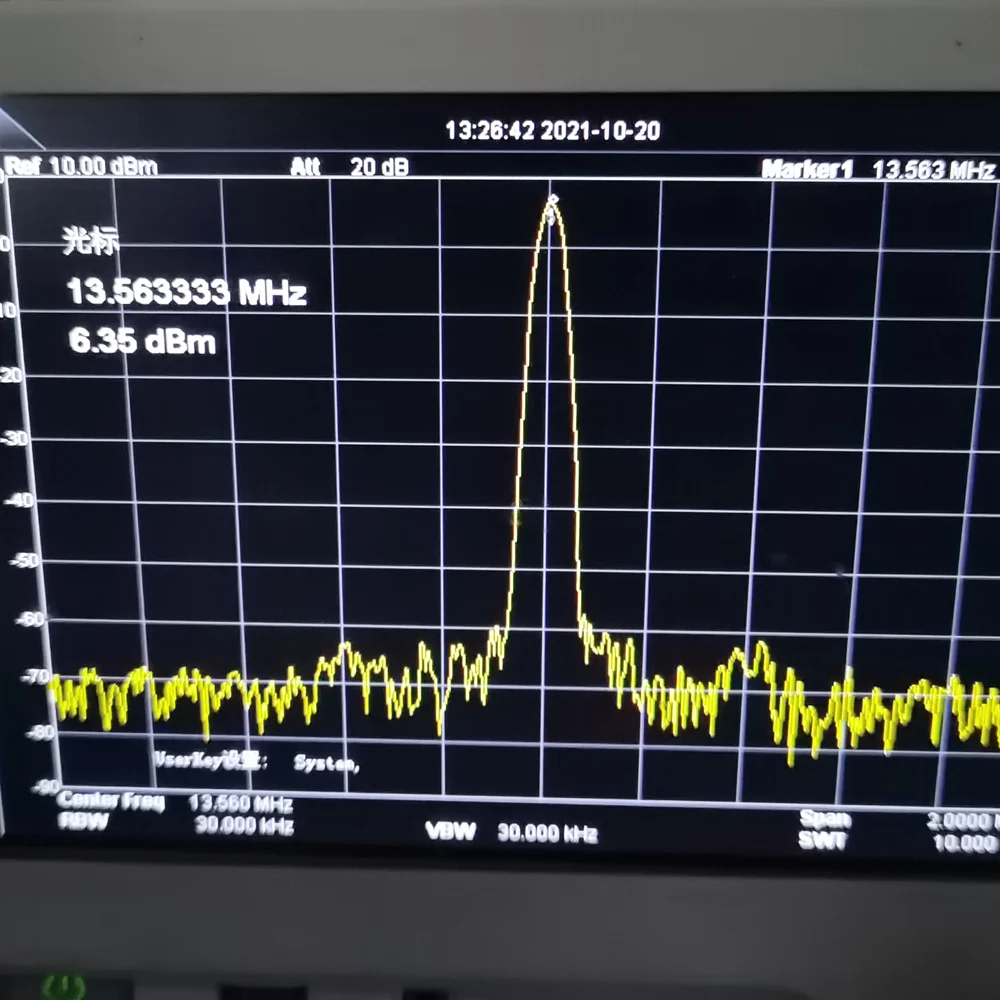

Working frequency: 11-14mhz, center frequency: 13.56MHz (this is the default working frequency, please contact the shopkeeper for other frequencies)
Input and output impedance: 50 ohms
The high-frequency power amplifier must be connected to the nominal load before it is powered on (our power amplifier products default to 50 Ω), which is very important!
Power supply: 12-15v
Size: 60 * 100mm
Net weight: 375g (375 g)
Description
Description
Note: DIY KITS : without heatsink
Assembled one: with heatsink,
With low-pass power amplifier, output perfect sine wave.
Input: 0-10dbm (1-10MW)
Output: 45-47dbm (30-50w)
Working frequency: 11-14mhz, center frequency: 13.56MHz (this is the default working frequency, please contact the shopkeeper for other frequencies)
Input and output impedance: 50 ohms
The high-frequency power amplifier must be connected to the nominal load before it is powered on (our power amplifier products default to 50 Ω), which is very important!
Power supply: 12-15v
Size: 60 * 100mm
Net weight: 375g (375 g)
