Description
Socket Tester RM200







ST02 Smart Socket Tester
6 Results

ST02 Features:
Smart Socket Tester: for detecting the wiring situation of the socket to ensure the safety of household electricity. Reliable Quality & High Performance: ensures to get the result accurately and quickly. Digital LCD Display without Indicator Light: the tested result directly display on the LCD screen clearly for easily viewing, don't need to judge by yourself. Voltage & Frequency Test: the voltage and frequency display on the lower part of the LCD screen at the same time. RCD Leakage Switch Detection: plug the tester into a properly wired three-hole power socket, and short press the leakage test button. Other Features: compact size, portable design, one key operate, easy to use, just plug and play. Applications: useful tool for testing the electrical outlets in home, office, school, factory, etc. Test Results: CORRECT MISSING GROUND MISSING NEUTRAL LIVE NEUTRAL REVERSE LIVE GROUND REVERSE LIVE GROUND REVERSE & MISSING GROUND

UK Socket

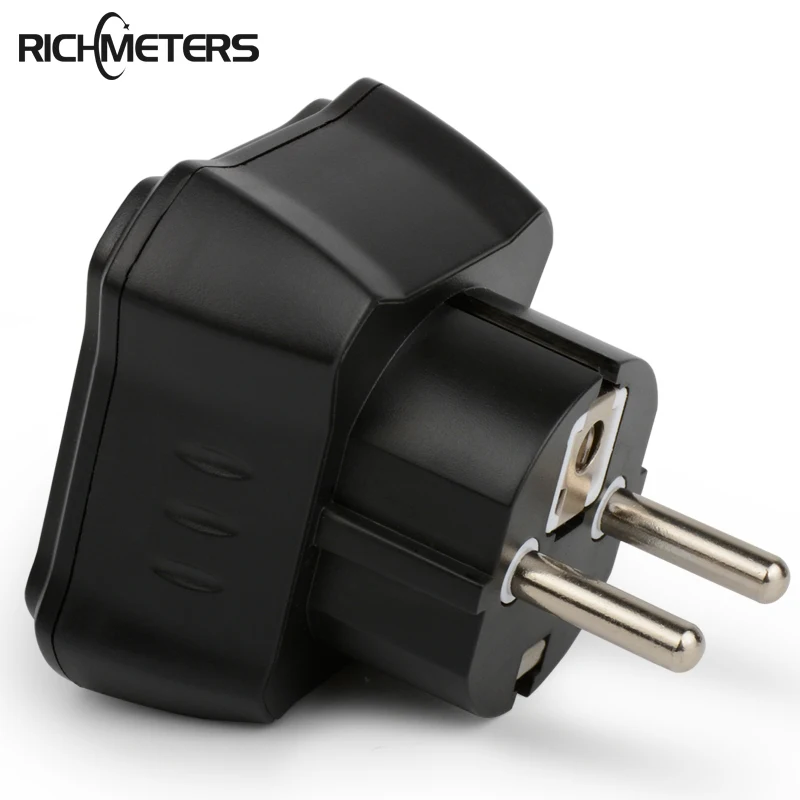

EU Socket

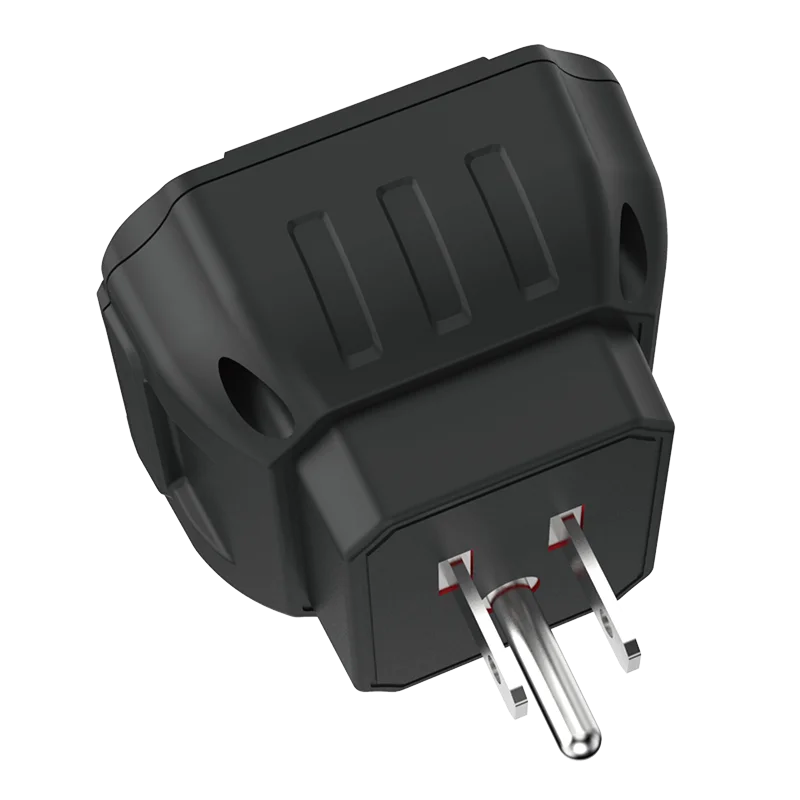

US SOCKET



Specifications:
Color: Black / White (Optional) Plug Type: EU Plug / US Plug (Optional) Material: ABS Measuring Voltage Range: 90~120V(US plug), 220~250V(EU plug) Whole Machine Working Current: <3mA (not in RCD status) Measuring Voltage Accuracy: ±(2%+5) Working Temperature: 0~40℃ Working Humidity: 20%~75%RH Storage Temperature: -10~50℃ Storage Humidity: 20%~80%RH Altitude: <2000 meters RCD Current: >30mA Front Panel Size: 68 * 60mm / 2.68 * 2.36in Thickness: 45mm / 1.77in(US plug), 50mm / 1.97in(EU plug) Item Weight: 77g / 2.72oz Package Weight: 100g / 3.53oz Package Size: 7.5 * 7.5 * 6.5cm / 2.95 * 2.95 * 2.56in
Packing List:
1 * Socket Tester 1 * Manual (English)
