NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch on Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch on Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
Sale
Sold out
Pre-order
Regular price
$27.99 USD
Regular price
$47.99 USD
Sale price
$27.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /10/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch on Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
Description:

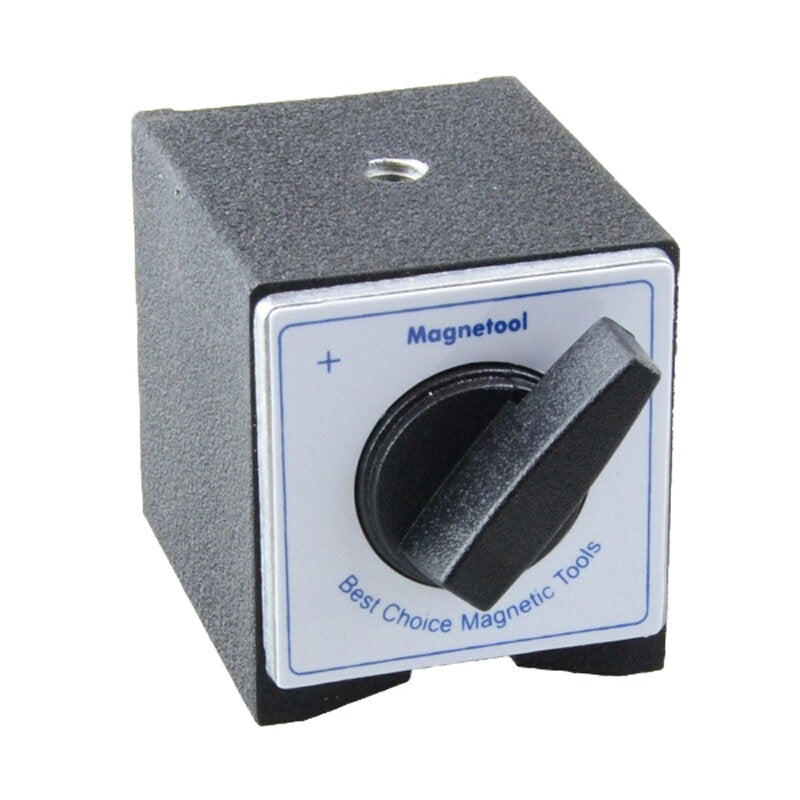

The Magnetic Base has permanent magnet inside the metal block body, with the "on/off" or "+ / -"switch to open or shade the magnetic field to hold on the ferrous metal surface or remove the magnetic base. The magnetic base has the screw hole on the top surface to install holderfor dial indicator, gauge, line cutting arm, lifting bar and etc.
Note: 1,The Magnetic holding force is depend on the holding ferrous material, thickness, flatness, roughness and etc.
2, 30kg is the type tested max holding break force, not the bending or friction force.
3, Because of the interior magnet is made of strong Ndfeb material, the rotating support is special, so operate the switch
Specification:
Package includes:
1 X NF-H Magnetic Base
Details pictures:
Specification:
| Base Model | Magnetic Base Size (mm) | Holding Force Kg | Screw Hole | Material | Weight | |||
| Length | Width | Height | Panel | Switch | Kg | |||
| NF-H | 36 | 30 | 35 | 30 | M5 | Metal | Plastic | 0.20 |
| MB-6D | 60 | 50 | 55 | 60 | M8x1.25 | 0.95 | ||
| MB-8D | 60 | 50 | 55 | 80 | M8 | 0.95 | ||
| MB-10D | 74 | 50 | 55 | 100 | M8 | 1.19 | ||
| MB-12D | 120 | 50 | 55 | 120 | M8 | 1.95 | ||
| MB-15D | 126 | 60 | 52 | 150 | M8 | 2.30 | ||
Package includes:
1 X NF-H Magnetic Base
Details pictures:
Description
Description
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch on Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
Description:
The Magnetic Base has permanent magnet inside the metal block body, with the "on/off" or "+ / -"switch to open or shade the magnetic field to hold on the ferrous metal surface or remove the magnetic base. The magnetic base has the screw hole on the top surface to install holderfor dial indicator, gauge, line cutting arm, lifting bar and etc.
Note: 1,The Magnetic holding force is depend on the holding ferrous material, thickness, flatness, roughness and etc.
2, 30kg is the type tested max holding break force, not the bending or friction force.
3, Because of the interior magnet is made of strong Ndfeb material, the rotating support is special, so operate the switch
Specification:
Package includes:
1 X NF-H Magnetic Base
Details pictures:
Specification:
| Base Model | Magnetic Base Size (mm) | Holding Force Kg | Screw Hole | Material | Weight | |||
| Length | Width | Height | Panel | Switch | Kg | |||
| NF-H | 36 | 30 | 35 | 30 | M5 | Metal | Plastic | 0.20 |
| MB-6D | 60 | 50 | 55 | 60 | M8x1.25 | 0.95 | ||
| MB-8D | 60 | 50 | 55 | 80 | M8 | 0.95 | ||
| MB-10D | 74 | 50 | 55 | 100 | M8 | 1.19 | ||
| MB-12D | 120 | 50 | 55 | 120 | M8 | 1.95 | ||
| MB-15D | 126 | 60 | 52 | 150 | M8 | 2.30 | ||
Package includes:
1 X NF-H Magnetic Base
Details pictures:
