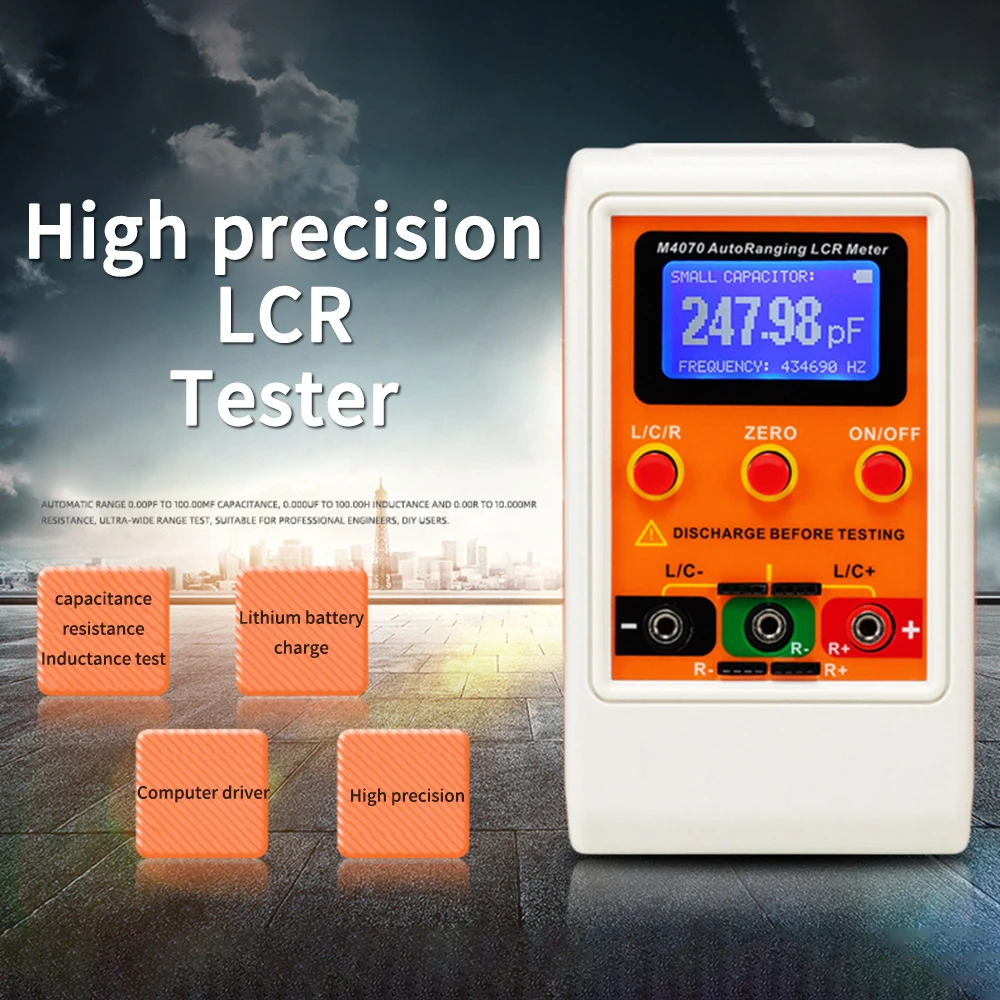

M4070 LCR Bridge Tester Capacitance Inductance Meter Automatic Range Design 0.00pF - 100.00mF 100.00mF 10.00MΩ USB PC Program
M4070 LCR Bridge Tester Capacitance Inductance Meter Automatic Range Design 0.00pF - 100.00mF 100.00mF 10.00MΩ USB PC Program
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features

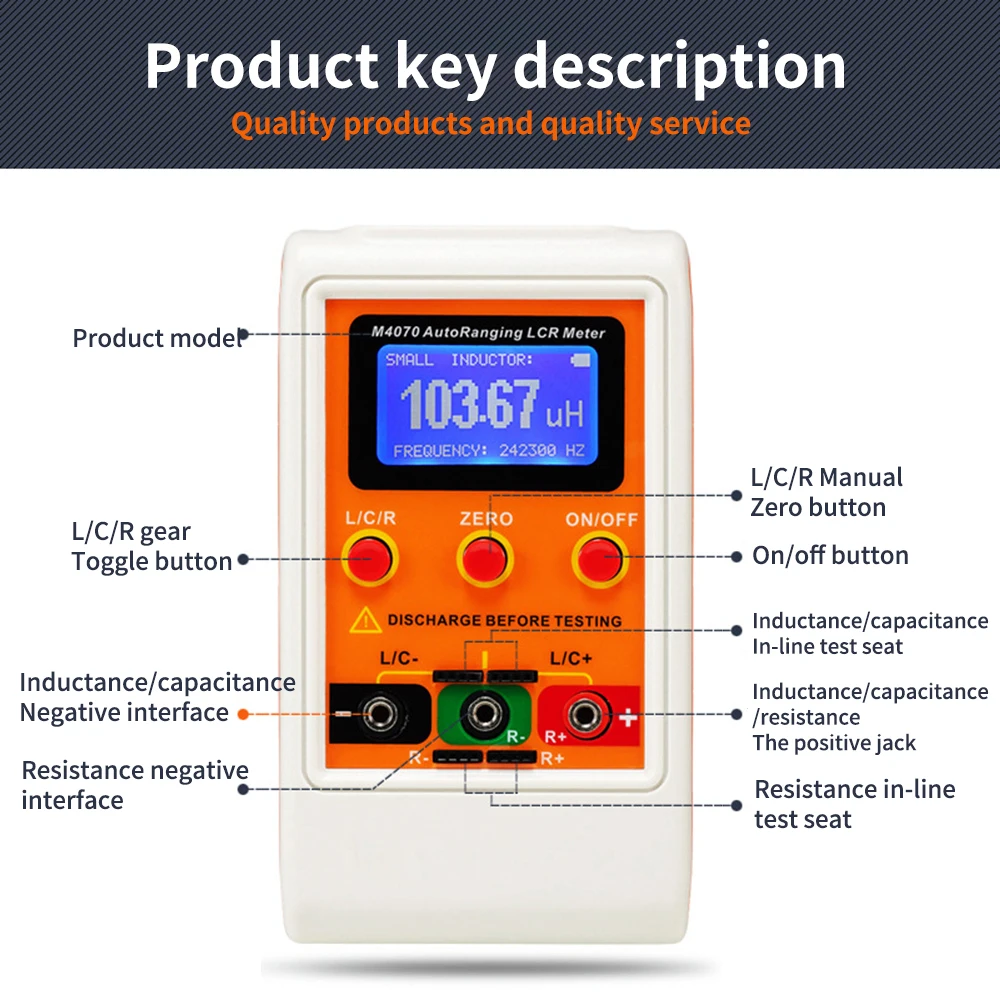

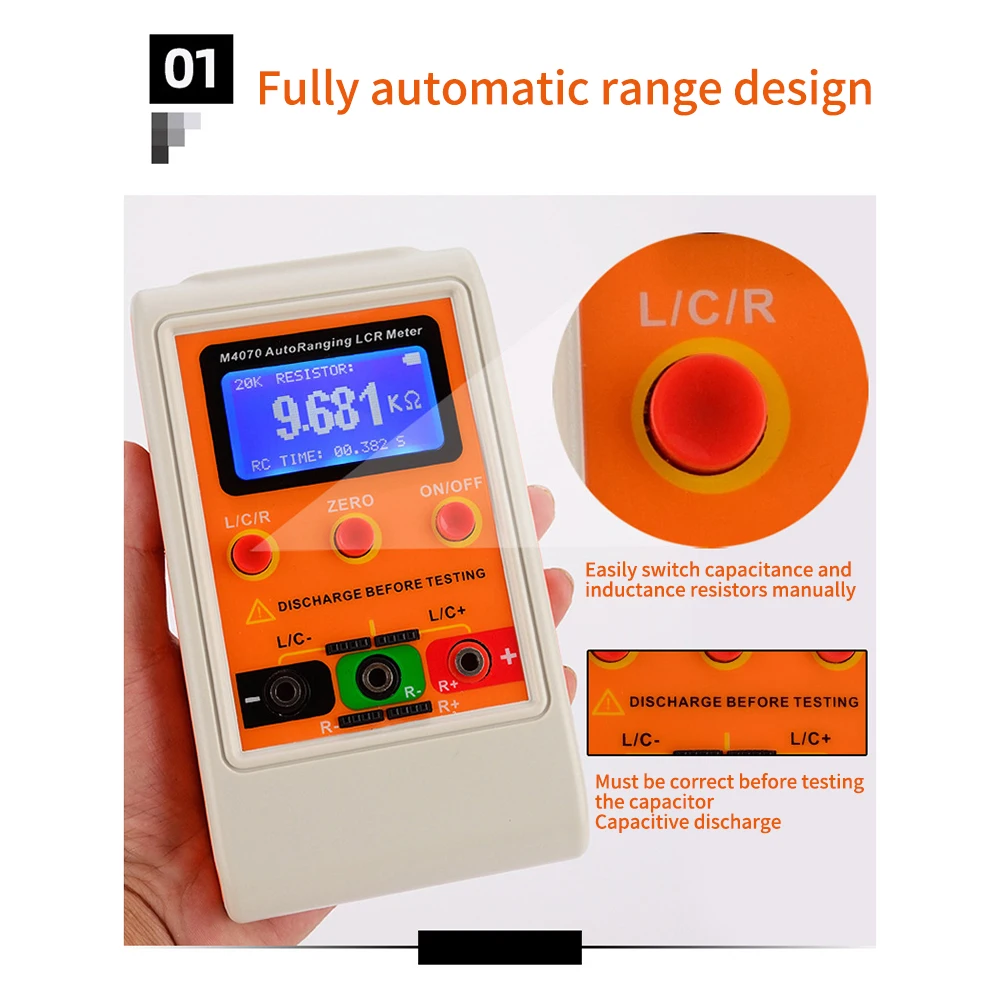

1. Fully automatic range design: easy manual switching of capacitance, inductance, and resistance

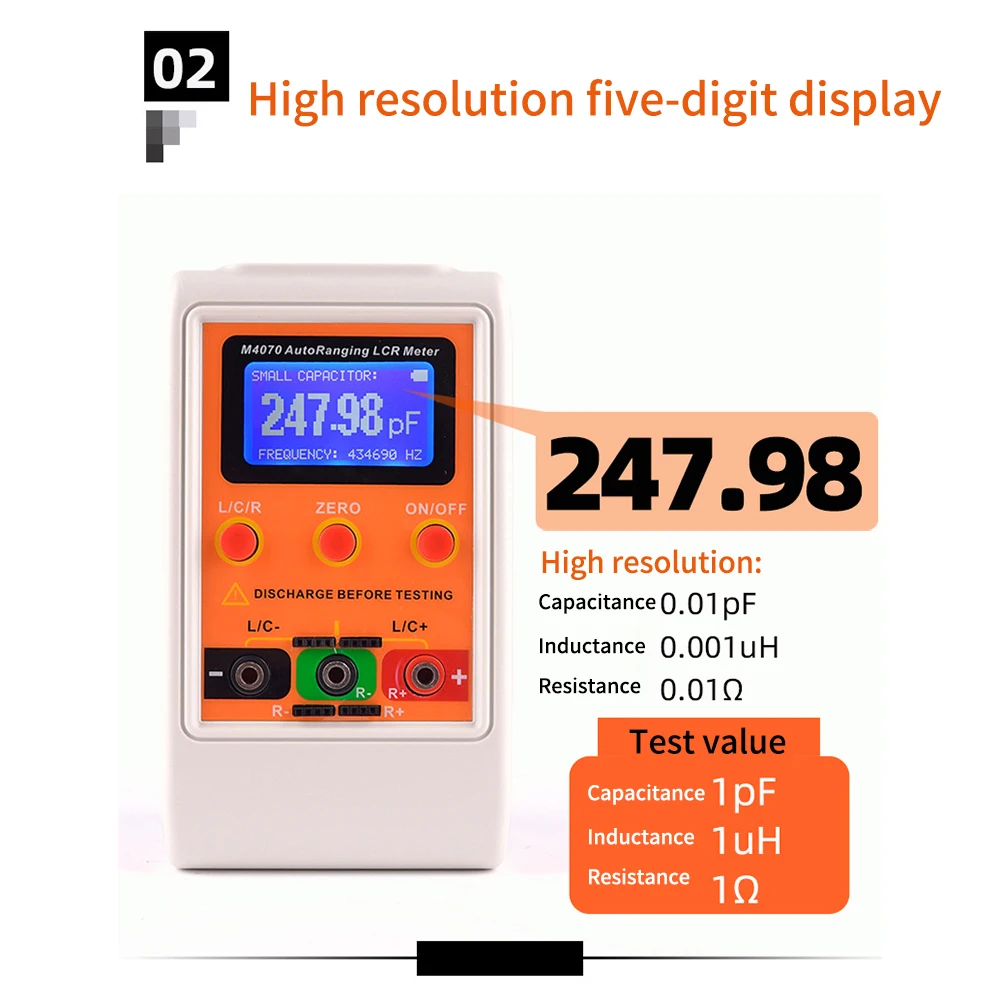

2. High resolution five digit digital display: high-precision 1%, capacitance 1pF, inductance 1uH, resistance 1 Ω

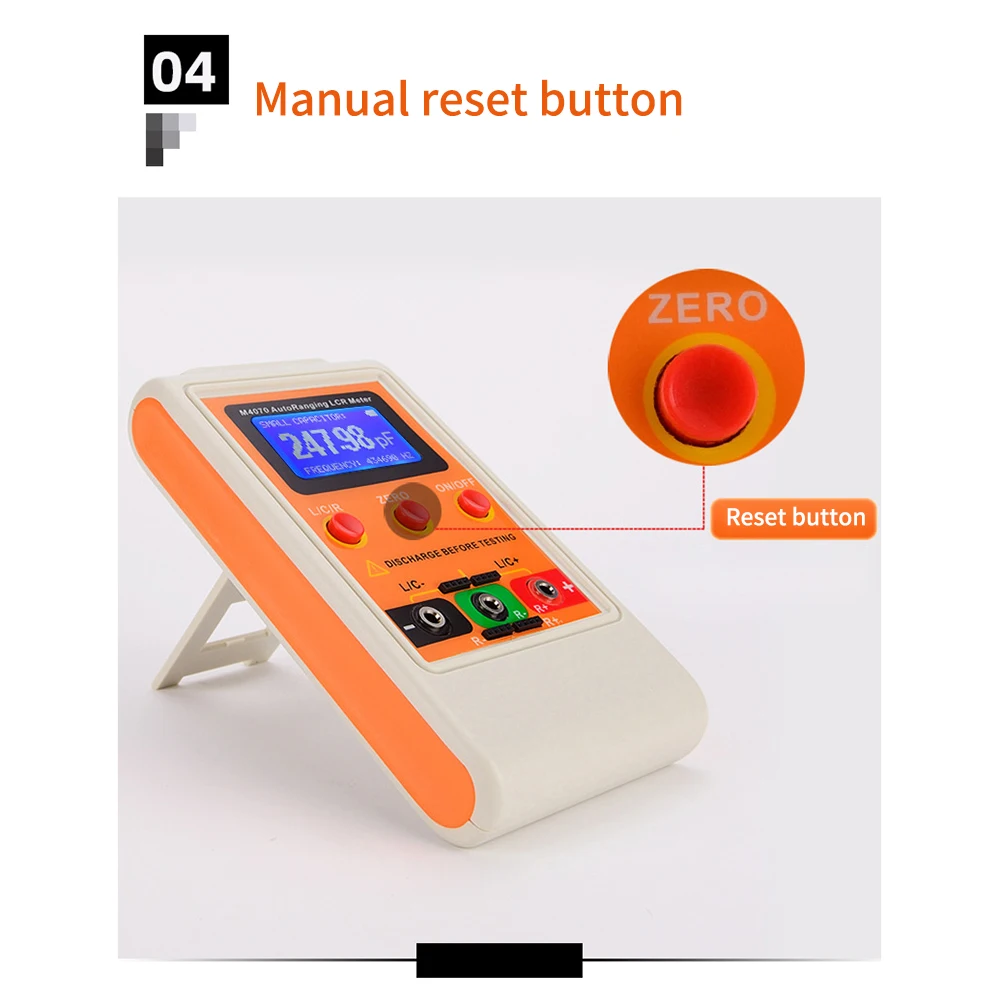

3. Manual reset button: removes errors and facilitates accurate testing of small numerical components

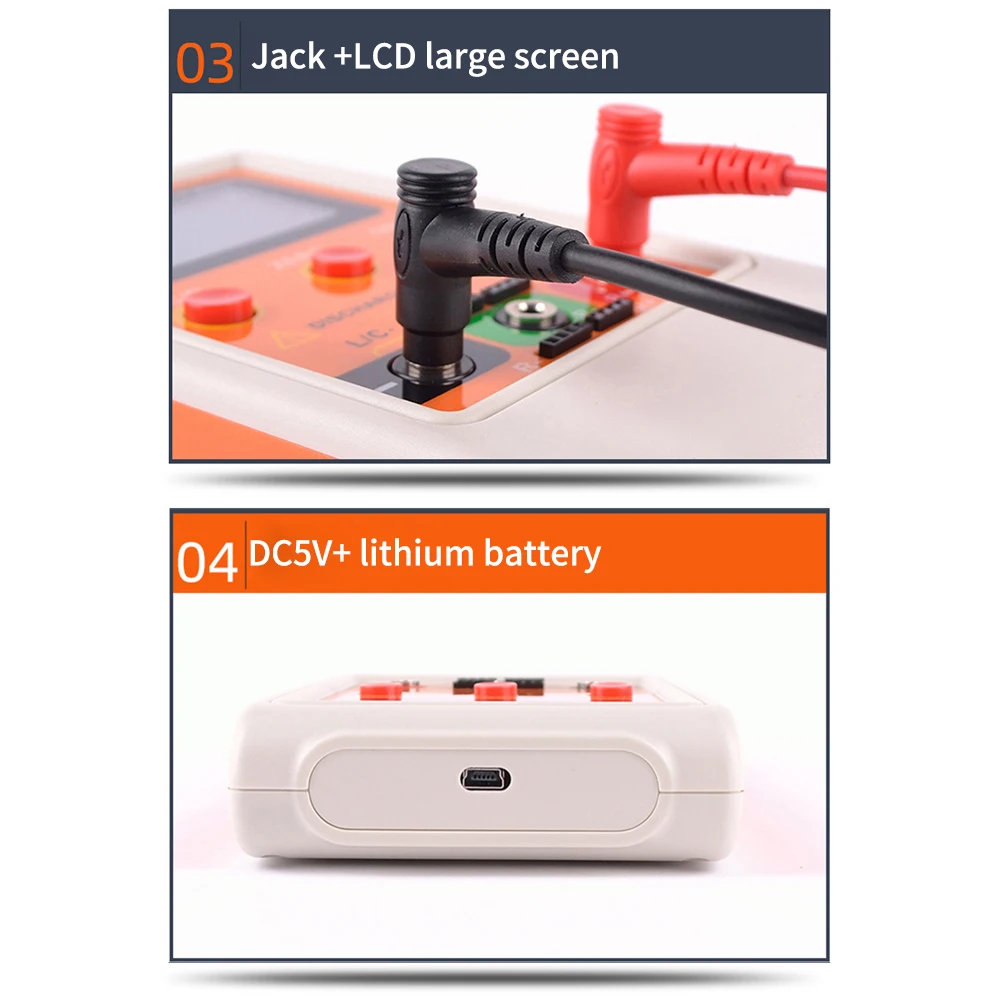

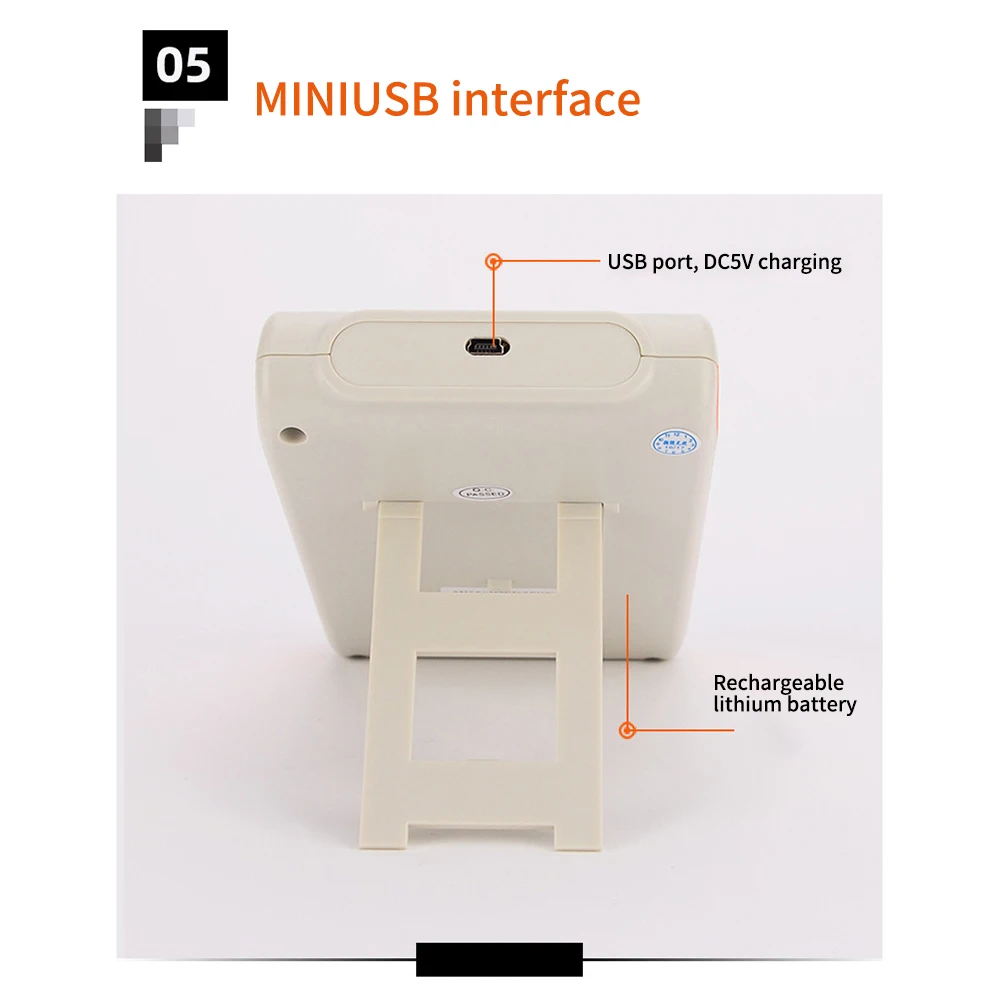

4. MINI USB interface: DC5V charging, built-in lithium battery

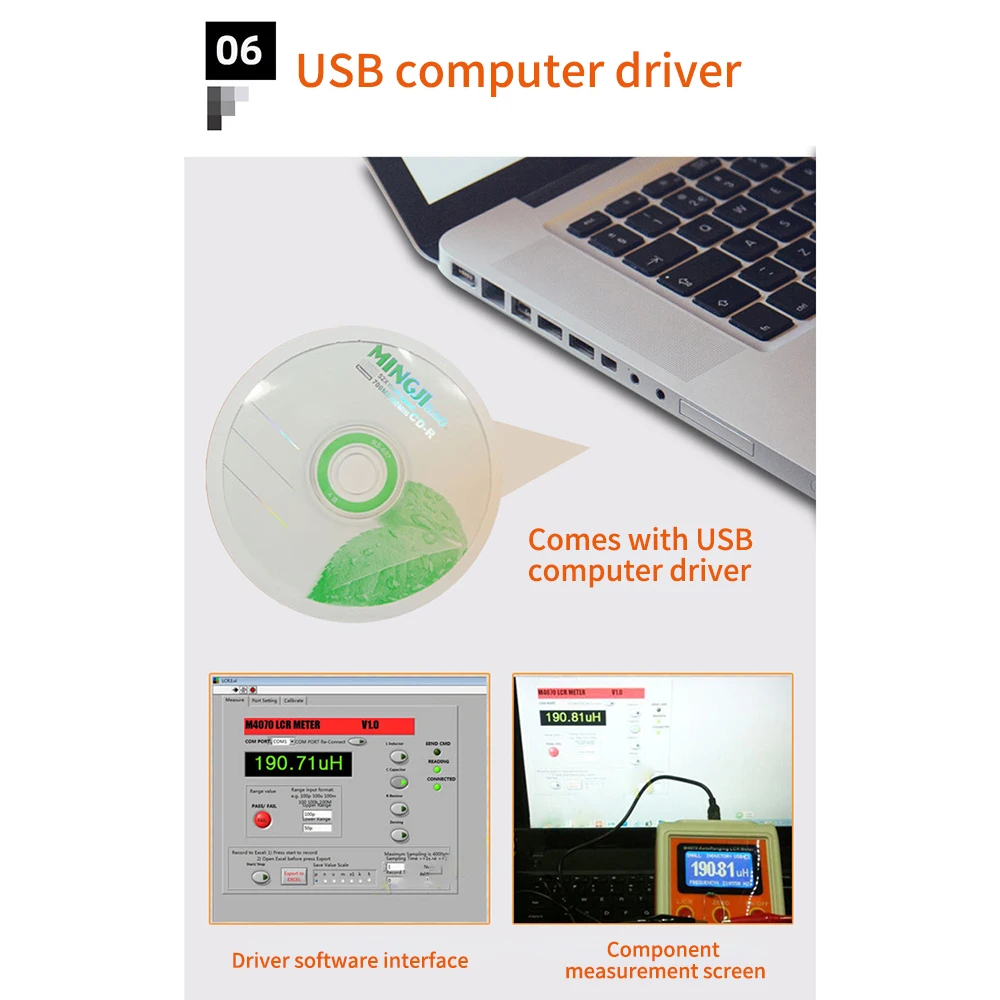

5. USB computer driver program: convenient for data collection, used by professional electronic engineers for engineering testing

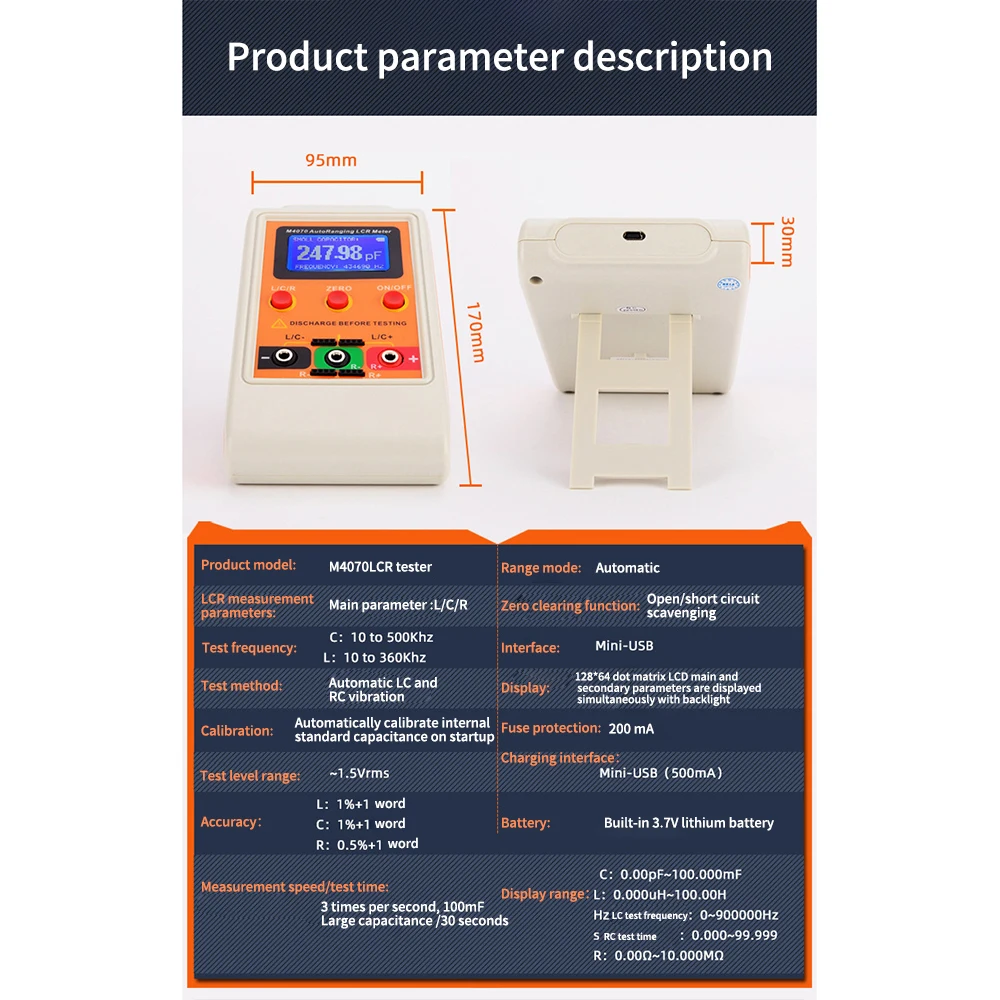

Parameters
Range method: automatic
LCR measurement parameters: Main parameter: L/C/R
Zeroing function: open/short circuit sweep frequency reset
Test frequency: C: 10 to 500Khz, L: 10 to 360Khz
Interface: Mini USB (virtual serial port)
Charging interface: Mini USB (500mA)
Test method: Automatic LC and RC vibration
Display: 128 * 64 dot matrix LCD with simultaneous display of main and secondary parameters and backlight
Calibration: Automatic calibration of internal standard capacitance upon startup
Fuse protection: 200 mA
Test level range:~1.5Vrms
Accuracy: L: 1%+1 words, C: 1%+1 words, R: 0.5%+1 words
Battery: built-in 3.7V battery
Measurement speed/test time:<3 times/second, 100mF large capacitance<30 seconds)

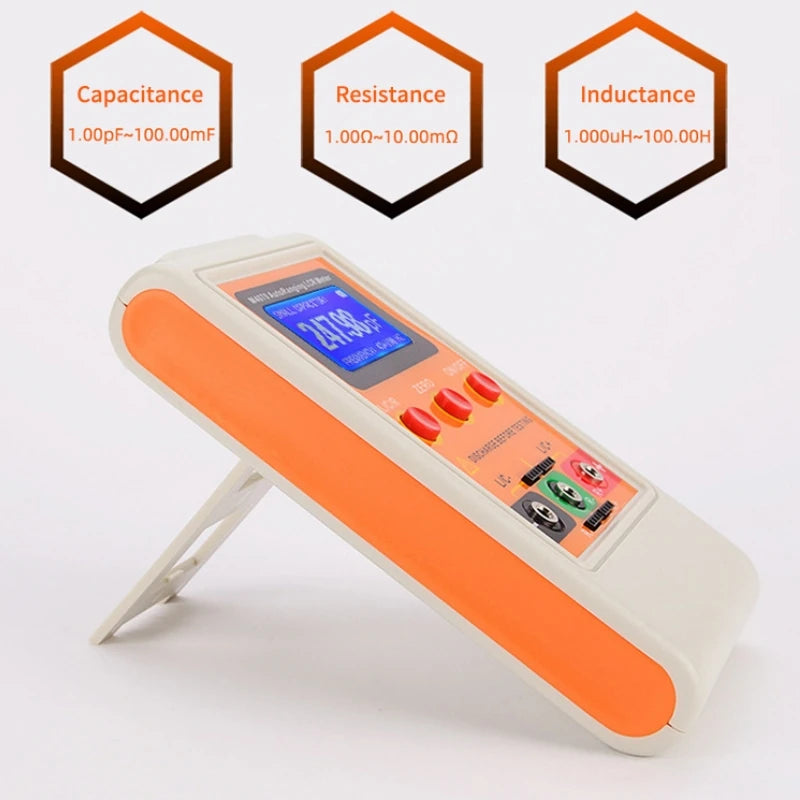

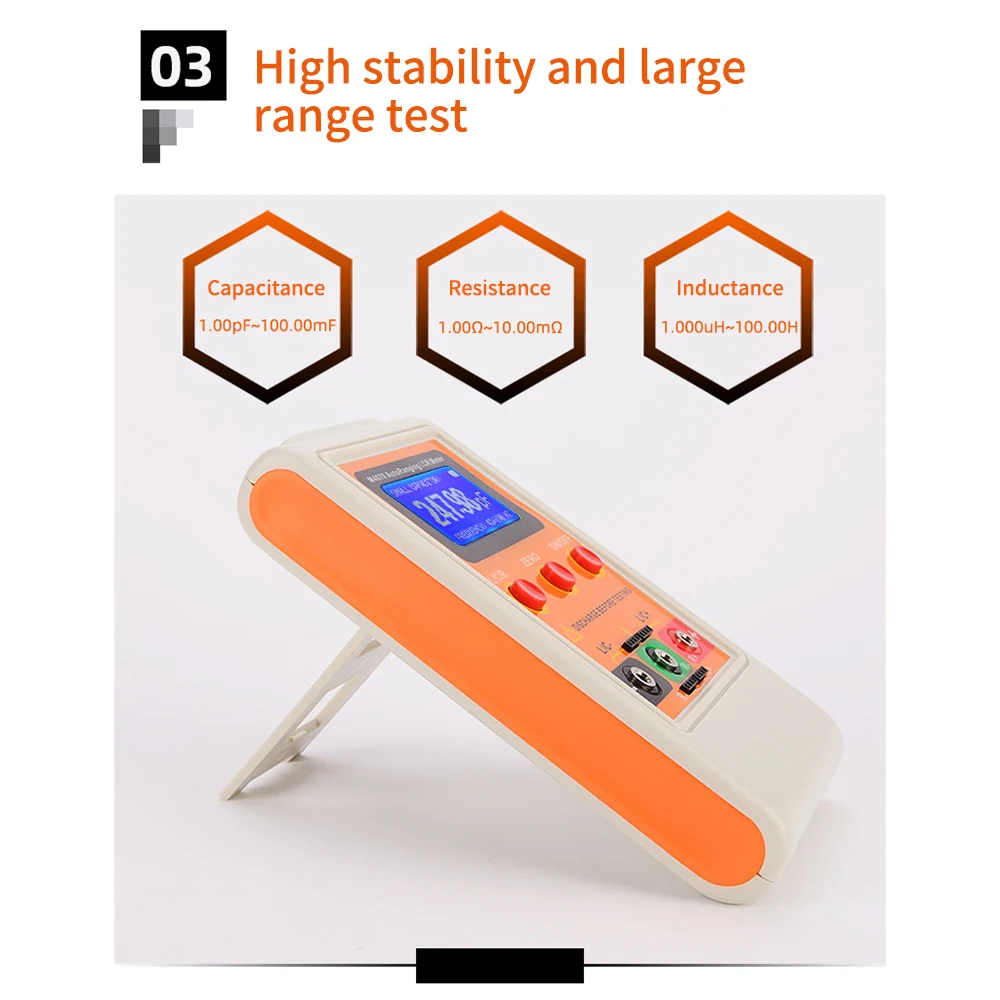

Display range: C: 0.00pF~100.000mF, L: 0.000uH~100.00H, HZ (LC test frequency): 0~900000Hz, S (RC test time): 0000~99.999, R: 0.00 Ω~10.000M Ω
