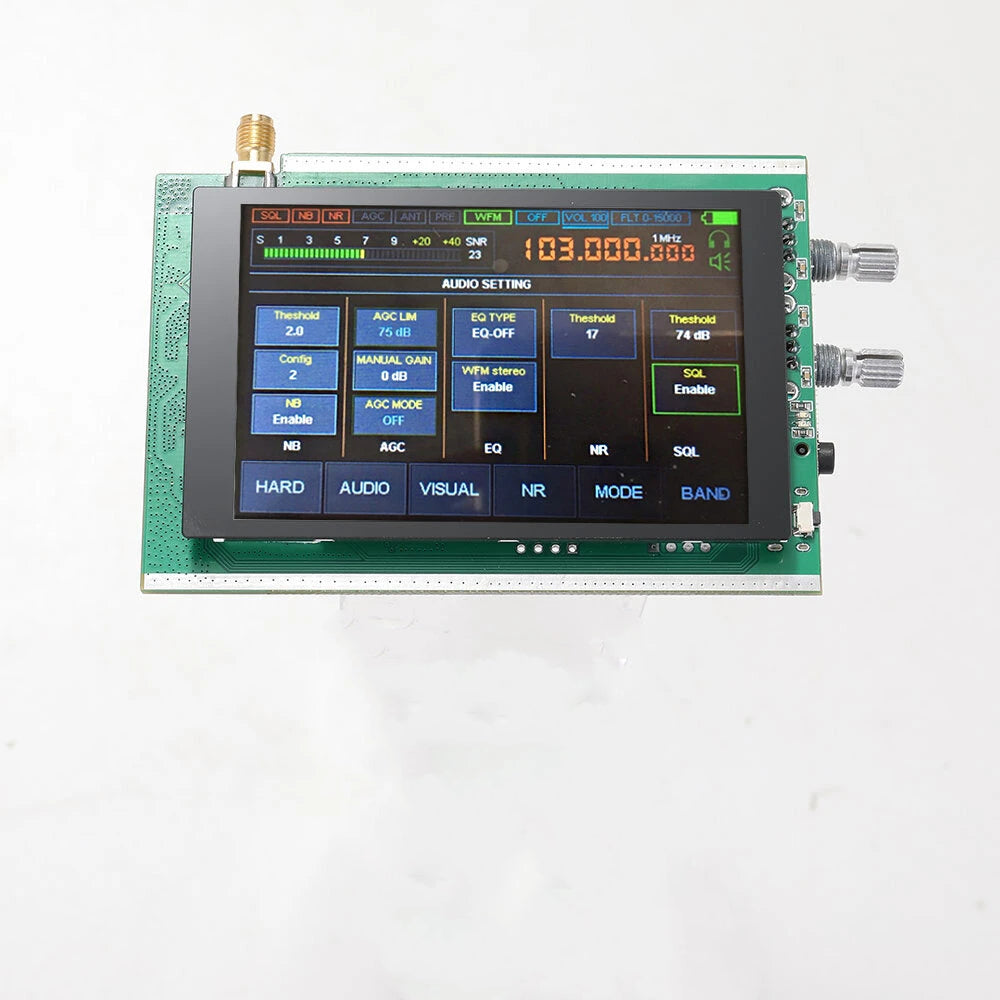

- Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.

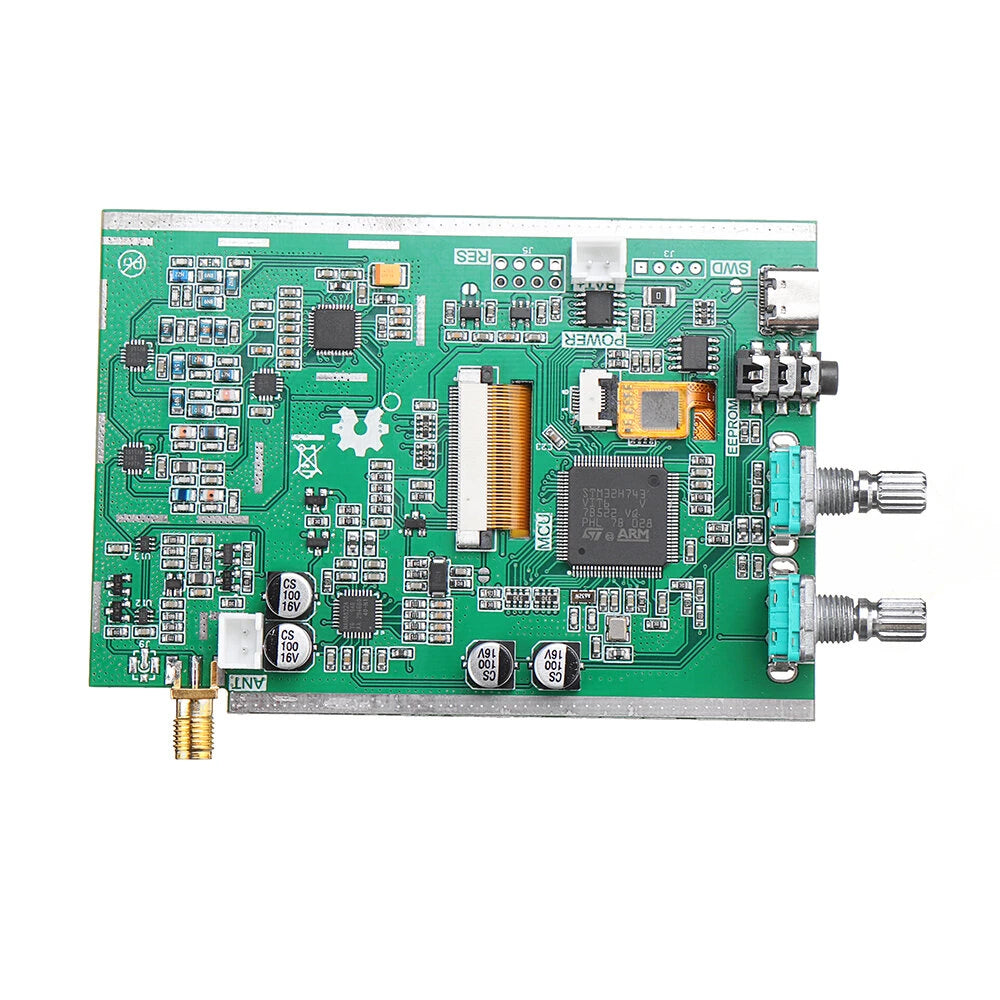

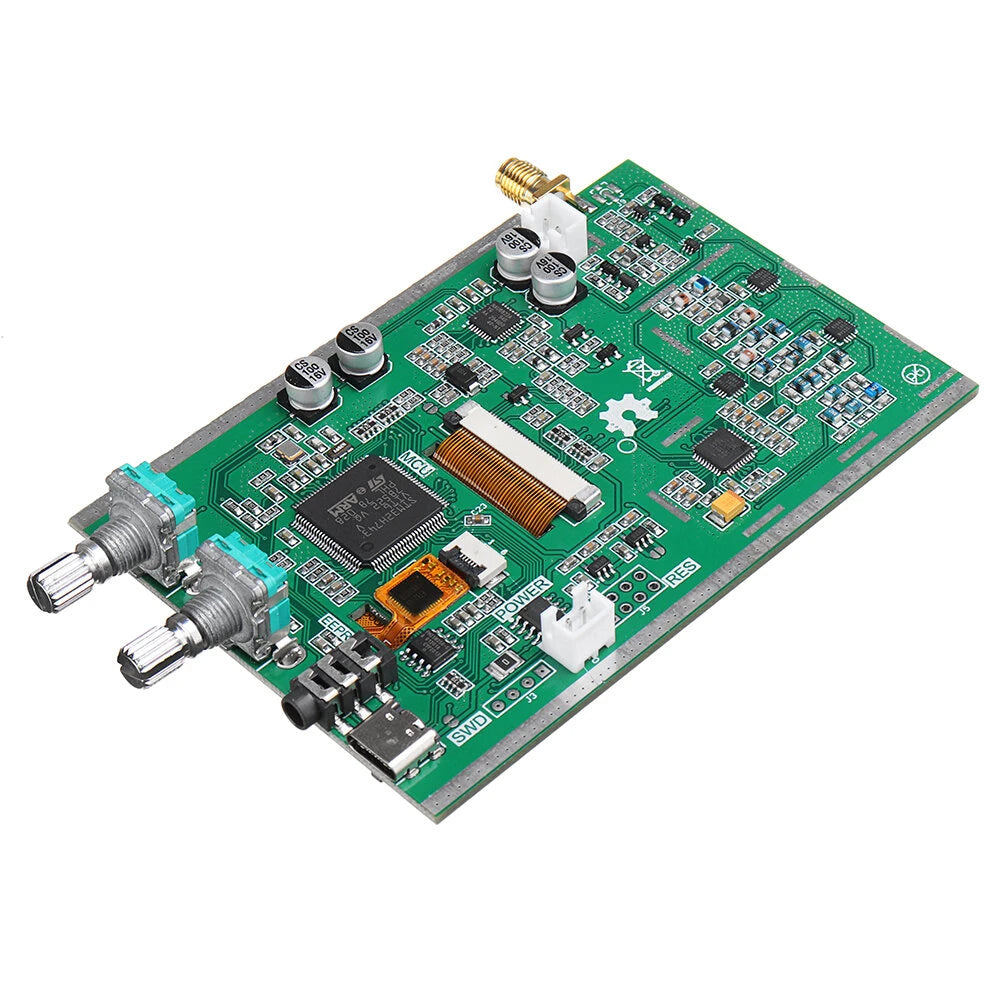

- Chip: use cheap but fully functional chip msi001, the powerful stm32h743 with clock frequency of 480mhz is applied.
- SDR: the radio is built on the principle of SDR - the function is determined by the loaded software.

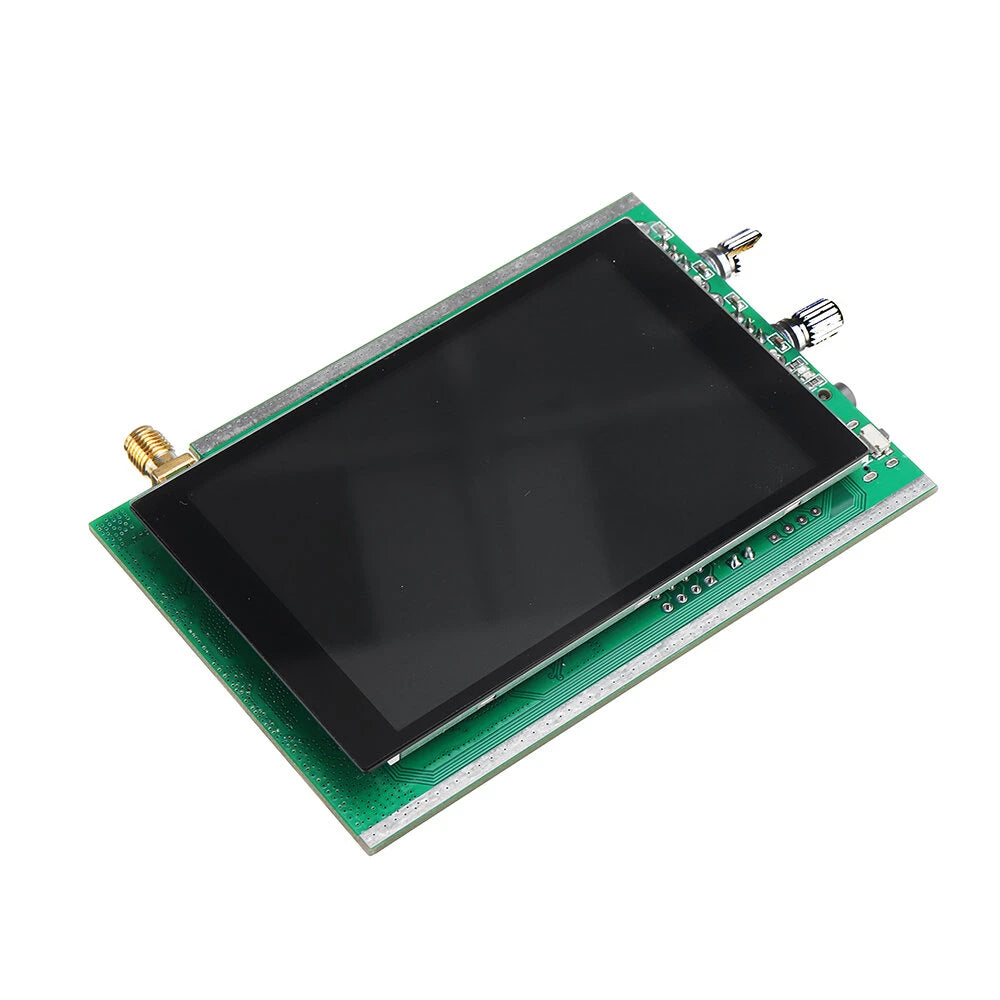

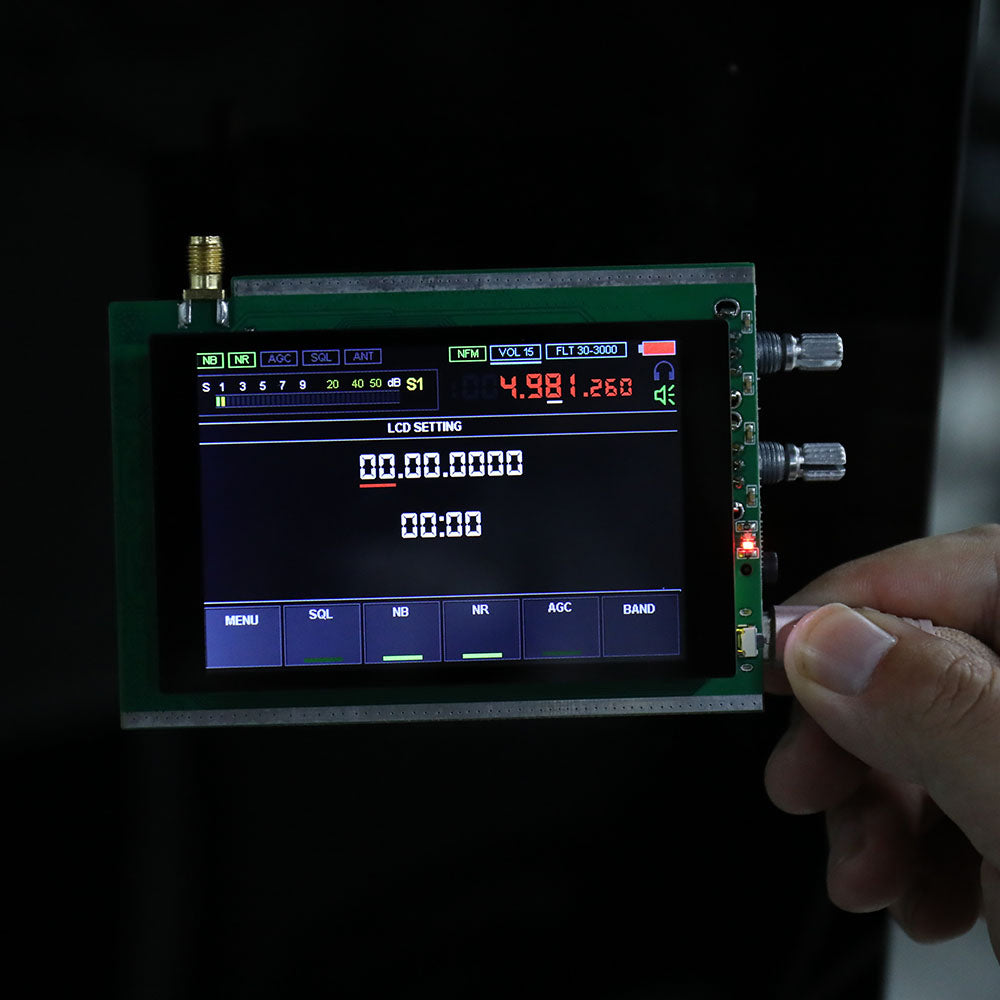

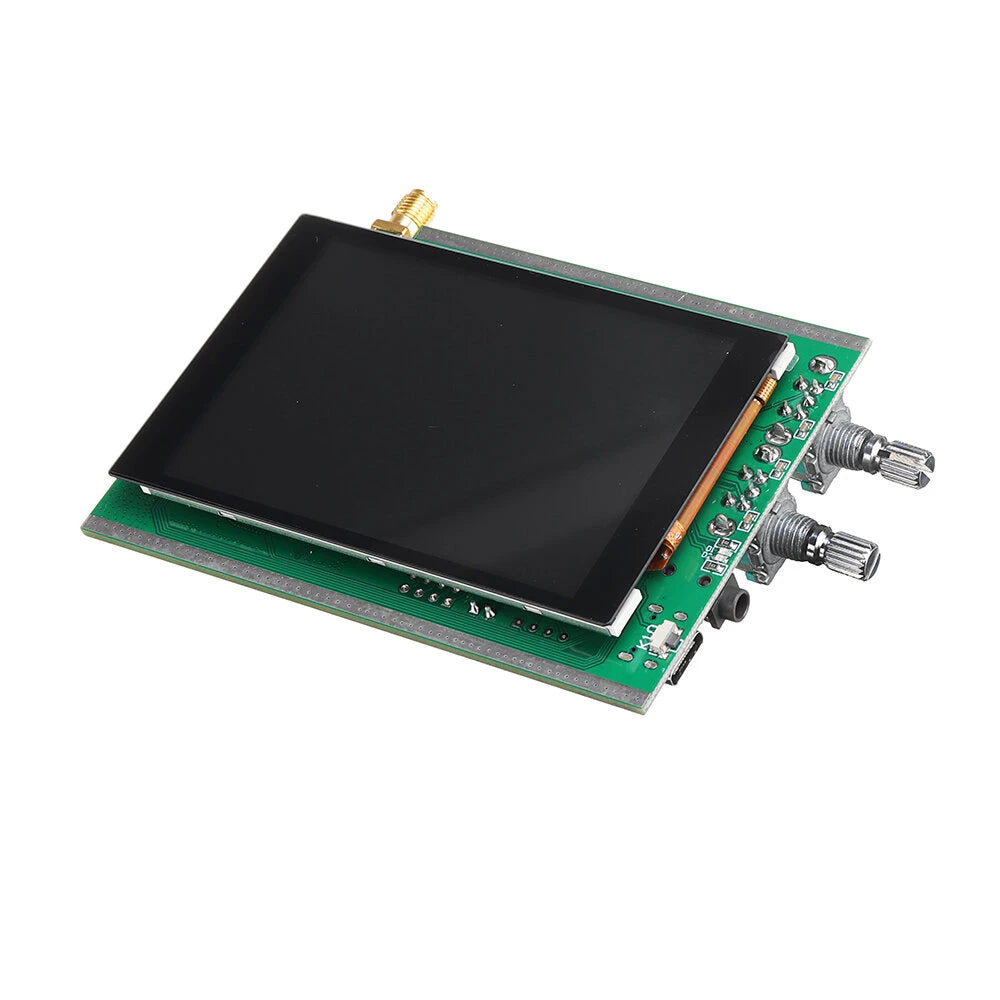

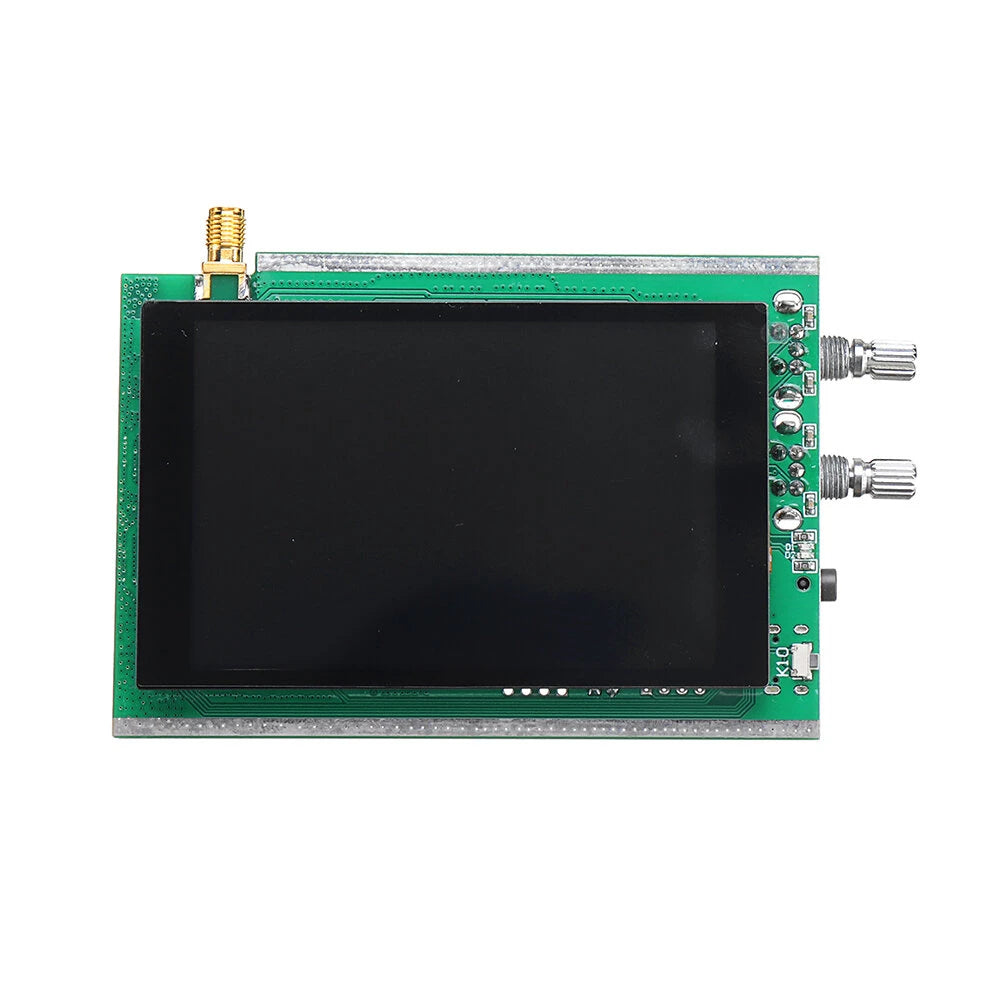

- LCD display: with 3.5 inch touch LCD display, 160 kHz span, expandable, backlight control, SMA antenna socket.
- Control: 2 encoders with buttons and touch screen.
- Additional board: in order to improve HF reception on the telescope antenna, an additional board with a source follower is developed, the board will be built into the standard receiver design.

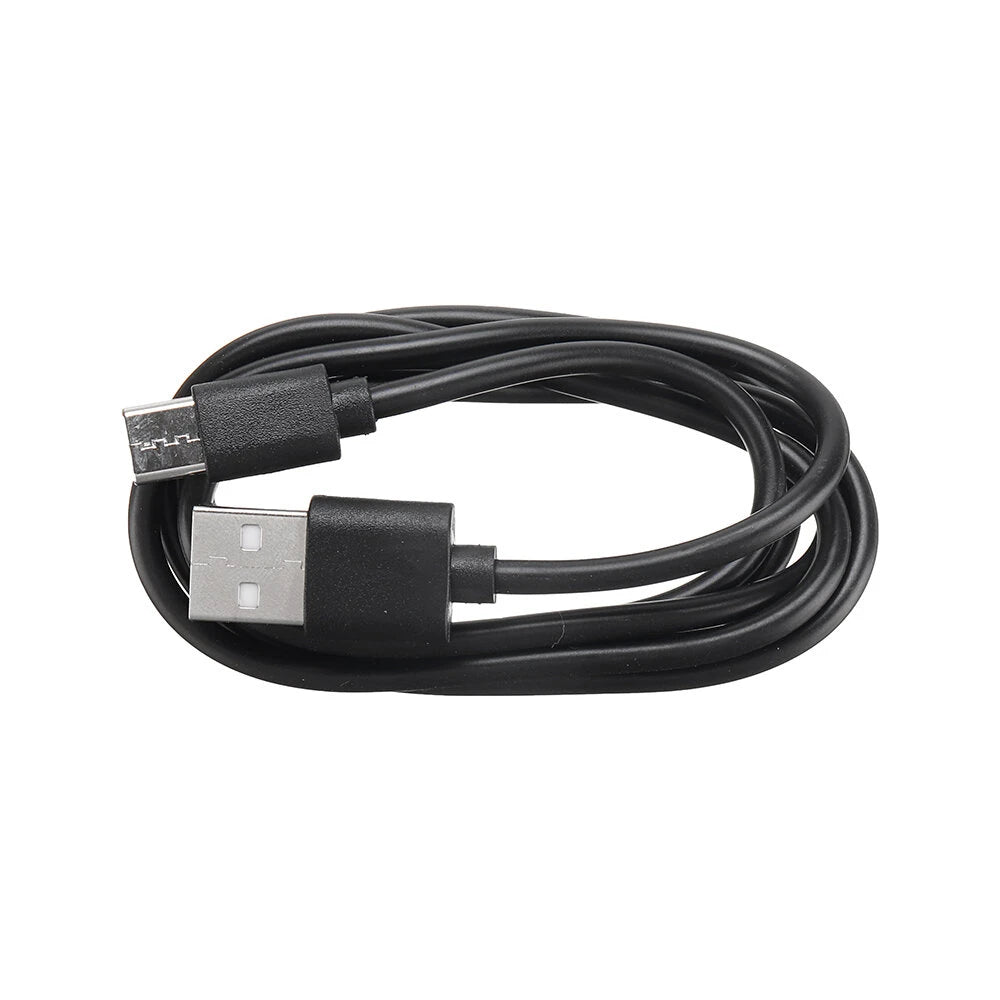

- Use: connecting to the computer via USB, you can transfer cat, IQ and audio.
- Dynamic blocking range: is about 85dB due to the characteristics of msi001 chip used.
- Consumption: 300mA when listening to headphones.
Color: as shown
Frequency range: 50KHz to 200MHz
Power: USB(Type C) power, or install battery , ( battery not included)
All types of analog modulation: AM, SSB, NFM, WFM
Sensitivity: 0.3 μ v = 10dB at S / w up to 250MHz; no measurement was carried out due to lack of measuring equipment

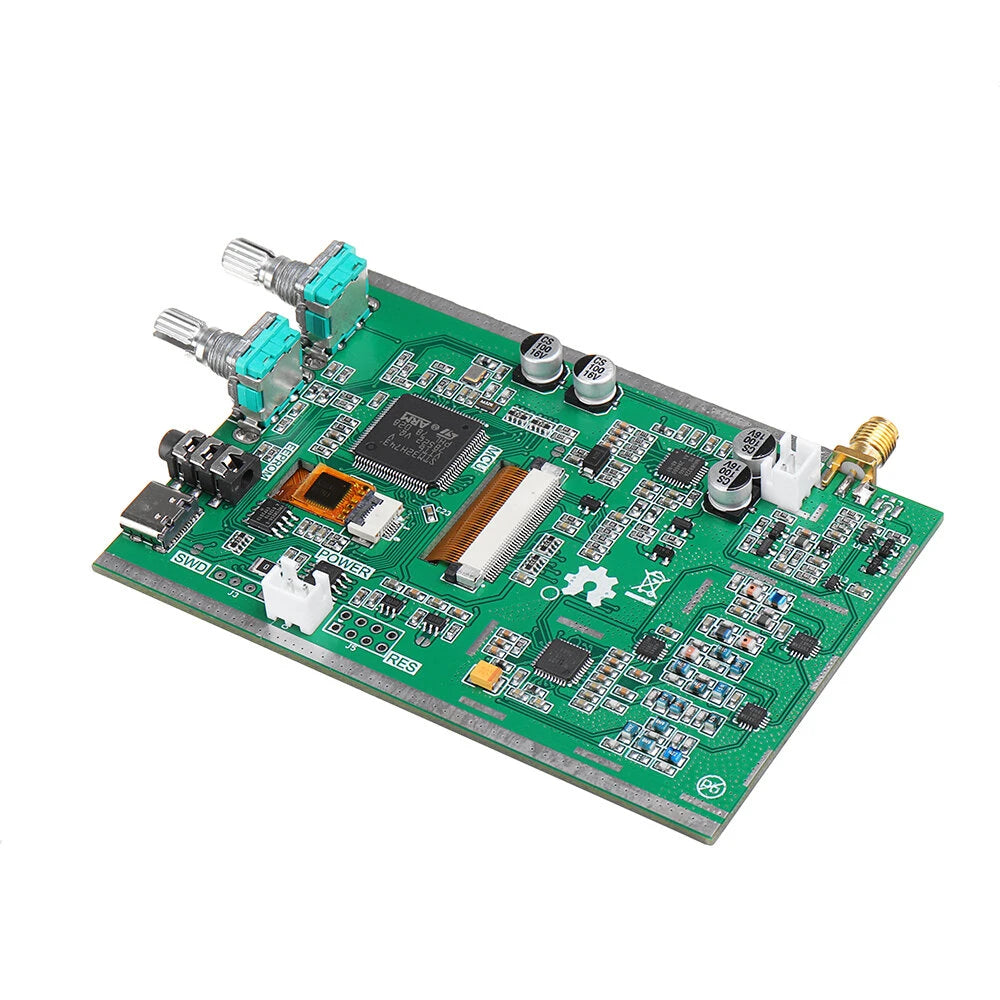

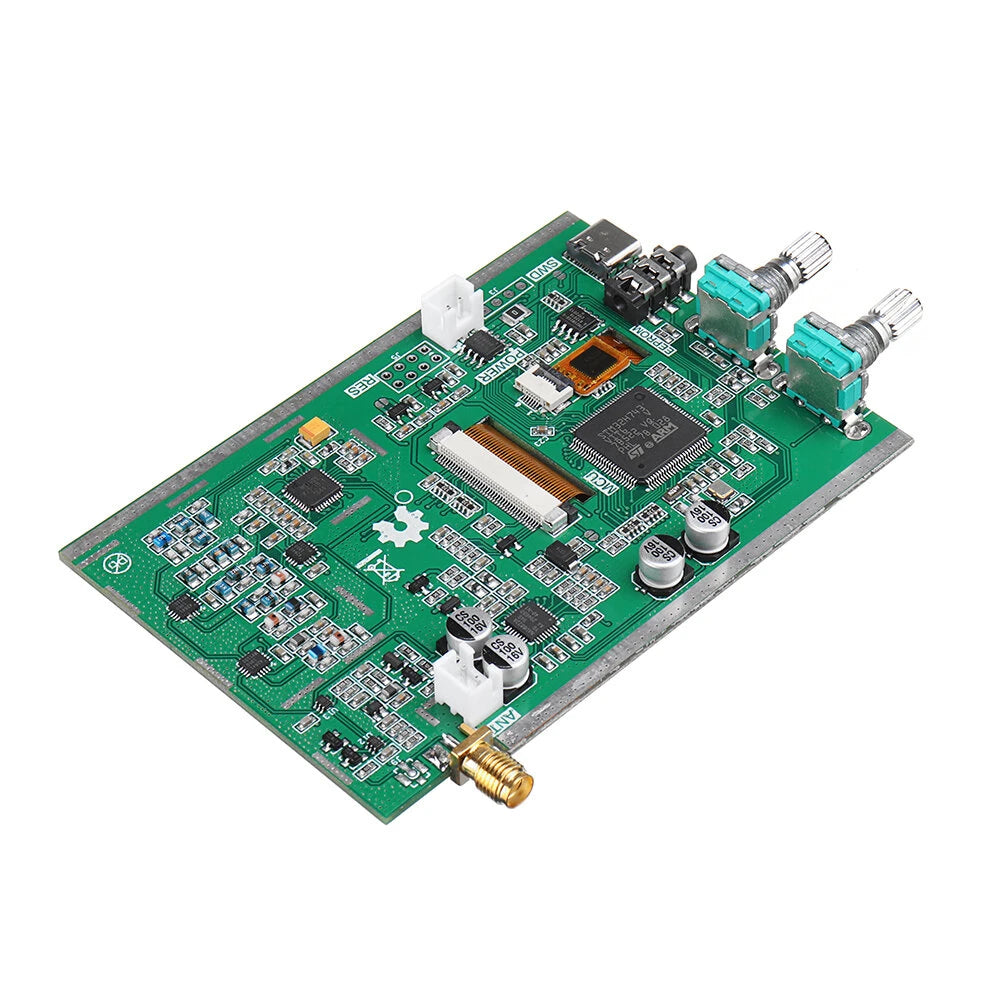

1 x 50K-200MHz Malachite DSP SDR Radio Malahit DSP SDR HAM Receiver
